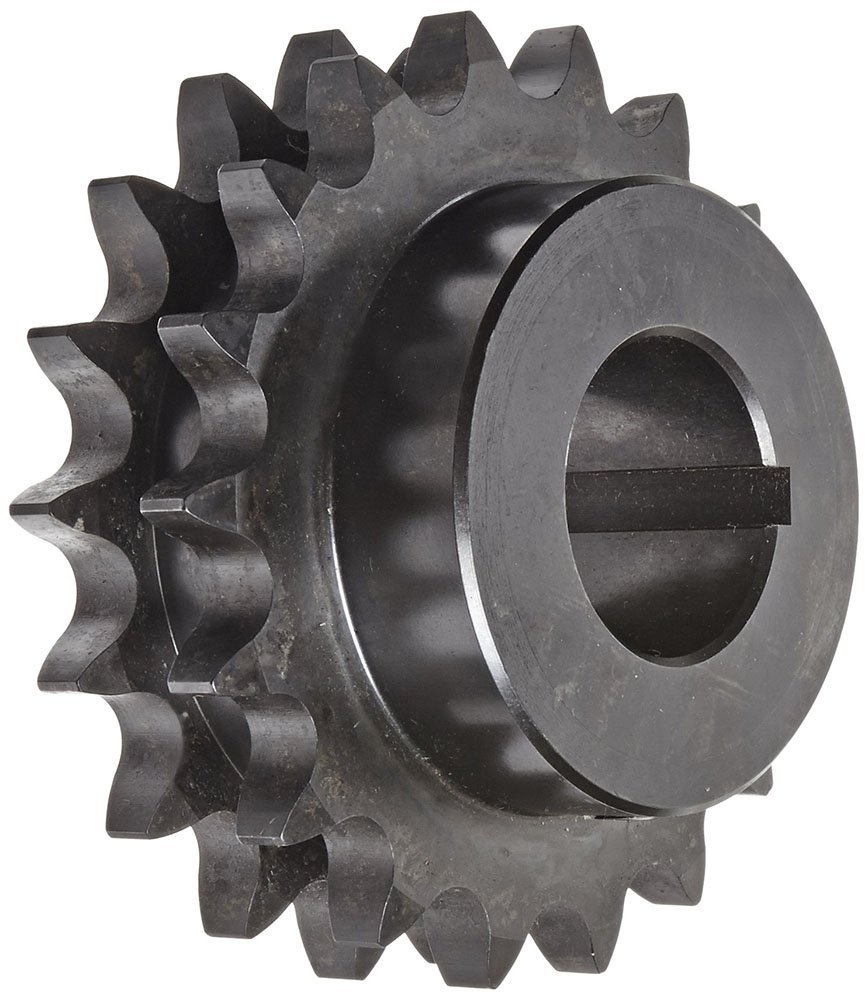

19-TOOTH #2052 CHAIN SPROCKETS
30 mm Bore
2052B19 ISO 10B-2 Sprocket 19 Teeth ISO No. 10B-2 Steel Hub Sprocket
For Ametric® No. 2052 Double Strand Chain with
15.875mm Pitch
9.65mm Roller Width
10.16mm Roller Diameter
8.8mm Sprocket Single Tooth Width (B1)
25.4mm Sprocket Double Tooth Width (B2)
104 mm Outside Diameter (Approximate) (de)
79 mm Hub Diameter (dn)
45 mm Total Width (A)
019 Teeth
