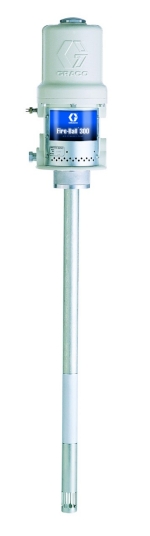

5:1 FIREBALL AIR-POWERED OIL PUMPS
Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life
Few moving parts in the air motor assembly means less downtime and low repair cost
Displacement rods have minimal wear due to a proprietary Graco manufacturing process
Large air porting design provides efficient use of compressed air supply for continuous pump operation without icing
Thick cast aluminum air motor housing offers unmatched durability
Materials:
Motor Oil, Gear Oil, Hydraulic Fluid, Oil, Fluid Grease, Grease NLGI #000, Grease NLGI #00, Grease NLGI #0, Grease NLGI #1, Grease NLGI #2
Applications:
Lubrication, Oil Transfer, Grease Transfer, Pumping, Fluid Transfer
Industries:
Manufacturing Equipment Lubrication Systems, Trucking, Fleets, Dealerships & Quick Lubes - Pumps
Maximum fluid working pressure | |
900 psi
|
|
Fluid Pressure Ratio | |
5:1
|
|
Air pressure operating range | |
40 to 180 psi
|
|
Maximum air consumption | |
13 cubic ft/min for first gpm pumped at 100 psi, up to 8 additional cubic ft/min for each additional gpm with pump operated within recommended range
|
|
Pump cycles per gallon (liters) | |
30 per gal
|
|
Recommended speed for optimum pump life | |
70 cycles per min
|
|
Wetted Parts | |
steel, aluminum, buna-N, urethane,
|
|
Sound pressure level (measured at 1 m from unit) | |
77.8 dB(A)Sound
|
|
Sound power level (tested in accordance with ISO 9614–2) | |
85.6 dB(A)
|
|
Approximate Weight | |
17 lb
|
NI 06132017 EH
