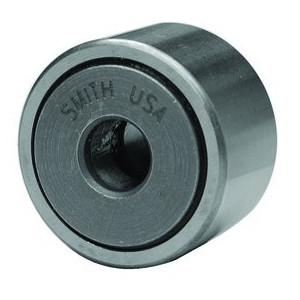

2-1/4" SEALED YOKE CAM FOLLOWER
Configuration |
Shaft Mounting | |
Type |
Sealed | |
Roller OD |
2.250" | |
Bore Nominal |
.6250" | |
Tolerance |
+.0002 -.0004 Inch | |
Roller Width |
1.250" | |
Overall Width |
1.3125" | |
Min. Clamping Dia. |
1 13/64" | |
Shaft Dia. Slip Fit Max. |
.6247" | |
Shaft Dia. Slip Fit Min. |
.6243" | |
Shaft Dia. Press Fit Max. |
.6257" | |
Shaft Dia. Press Fit Min. |
.6253" | |
Basic Dynamic Rating |
10370 lbs | |
Max. Static Capacity |
22000 lbs |
