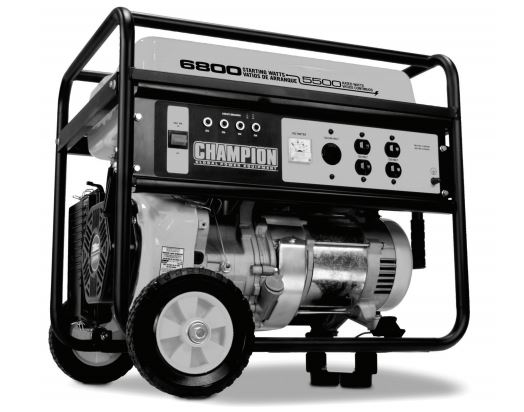

5500-WATT GAS GENERATORS
SURGE WATTS: 6800
Engine Specifications
– Model. . . . . . . . . . . . . . . . . . . . . . . YF182FD-011
– Displacement. . . . . . . . . . . . . . . . . . . . . . . 338cc
– Type. . . . . . . . . . . . . . . . . . . . . . . . 4-Stroke OHV
– Start Type. . . . . . . . . . . . . . . . . . . . . . . . . Recoil
Oil
Use 10W-30 automotive oil.
Oil capacity is up to 1.2 qt. (1.1 L).
DO NOT OVERFILL.
Please reference the following chart for recommended
oil types for use in the generator.
Generator Specifications
– Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41135
– Rated Wattage. . . . . . . . . . . . . . . . . . 5500 Watts
– Starting Wattage. . . . . . . . . . . . . . . . . 6800 Watts
– AC Load. . . . . . . . . . . . . . . . . . . . . . . 120/240 V
– Phase. . . . . . . . . . . . . . . . . . . . . . . . . . . . Single
– Frequency. . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz
– Fuel Capacity. . . . . . . . . . . . . . 5.9 gallons (22.4 L)
– Gross Weight. . . . . . . . . . . . . . . . . 183 lb. (83 kg)
– Net Weight. . . . . . . . . . . . . . . . 170.6 lb. (77.4 kg)
– Height. . . . . . . . . . . . . . . . . . . . 25.8 in. (65.5 cm)
– Width. . . . . . . . . . . . . . . . . . . . . 26 in. (66.1 cm)
– Length. . . . . . . . . . . . . . . . . . . 29.8 in. (75.7 cm)
Maintenance Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
Spark Plugs
OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
Fuel
Fuel capacity is 5.9 gallons (22.4 L). Use regular
unleaded gasoline with a minimum octane rating of 85
and an ethanol content of less than 10% by volume.
NI 11092017 EH
